Future Development/Conclusion

I feel I have achieved a lot in this project, and while it may not look 100% professional, I feel I have produced professional level functionality within my UI and Menus.

I think for future development I would like to try to add the following features:
Equipment management
Item upgrades
Loot Drops
Shooter improvements
Customisation
Multiple Weapons

During the development of these menu and UI objects I have learned a lot about advanced functionality in Unreal Engine 4 as well as HCI in general.

I have learned the importance of UI Theme and colours in making a project feel like a full coherent product as well as how this affects and guides the player's feelings towards the game.

Using Render Targets to create advanced effects with off-screen cameras capturing things to be used as HUD elements. I think this is really interesting and has a lot of applications in other areas.

Implementing Controller support into Menus was much more difficult than I anticipated, but I achieved what I had set out to do. I feel that Epic could have made this process more streamlined with one simple option added to their menu button system.

I found Implementing Shooter Game Mechanics relatively simple after experiencing the melee character implementation in a previous unit.

Line Trace was used for a couple of things in this project, and I think it will become very useful in future developments.

Replicating Customisations onto in-game Characters I think will become very useful, especially if I introduce loot and equipment management.

Physics Constraints, Physics Assets and using Physics objects as character parts was an interesting experience and I think it will come in useful at a later time.

Mini Map/Map Screen

I decided a good addition to the UI would be an on-screen mini map, and a real-time map screen.

These are both achieved in a similar way and use the same objects for both.

I started by creating a copy of the actual game map under the level, just without any roof pieces to allow for overhead cameras (this is important).

I made the walls black so that they would show up more clearly on the map screens.



For the mini-map, I needed a camera that would follow the position of the player on the map and clearly show the position.

I created a blueprint object with a green arrow piece and a camera with a render target pointing down on it attached.



This blueprint simply updates it's own  position based on where the player character is located (minus the depth at which the duplicate map is positioned).



And for tracking enemies, there is a similar red arrow blueprint, but the difference is that these objects are actually passive and do not have any code in themselves. They are spawned by each enemy when they are created, then receive their position from the enemy itself as it moves around.

And here's the code inside the enemies that communicate with the objects. You can see that when they are spawned they are assigned to a variable which is then used as the target for the positional updates.



For the main map screen, I just have another camera in the world with a scene capture that can see the whole map. All of the tracker objects from the mini map are visible which allows the user to see their own position, enemies and health pickups.

You can see both of these maps in action in the screen shot below. Notice how the mini-map rotates with the player character and the main map shows everything in relative position.

Ranger Character Implementation - Gameplay Mechanics

Following on from the setup for physics parts and animations, I began adding gameplay elements.

To control the gun, I used what I had learned from the menu toy and used a Line Trace from the camera centre out to find what was hit. I didn't use the gun as the origin of the line trace as this would be too unpredictable with the character animations moving the model around.

Here is a shot of the code for the aiming and firing.



It looks complicated, but the basic jist is we are firing out a line trace from the camera, detecting what has been hit, then using the Apply Point Damage transfer we set up for the melee character, using the line trace hit object as the target.

I have a variable that tracks ammo, which I have set up to be 10 shots before re-load. The re-load animation plays if the player presses fire with zero bullets, and this refreshes the total. This variable is linked to the ammo counter in my shooter UI which I will show further down.

I created a UI Widget with an aiming reticule in the centre, which is displayed whenever the player enters aim mode. I already moved the player camera off to the right of the character model in the viewport. When the player enters Aim mode, a Field of View zoom takes place to make the player feel more accurate.



You can also see the Ammo counter in this screen shot which reduces with each shot, then replenishes when you re-load.

Extra Gameplay Mechanics

I added a couple of extra gameplay mechanics to the shooting for some variety.

There is a bullet time which uses a timed Time Dilation node to slow the action down for a short period



I also added an AOE blast attack to save you from getting cornered by a large group or enemies. The core of this is a Radial Impulse on the character which is activated by a button press.



This sends the enemies flying away, plus I added an explosion particle effect to this ability.

Ranger Character Implementation - Setup and Physics

Since we were implementing a character selection, I thought it was a perfect opportunity to try and implement a second gameplay type.

In a previous project, we had been tasked with designing and creating a character. I am using this as the basis of my second character.





I first uploaded the model to Mixamo to get it quickly rigged, then used the site to download some relevant animations along with the rigged character.



I imported these into Unreal Engine 4 so I could get started on the gameplay mechanics.

As this character is a Ranger, I also imported the gun model I made for the character to use as the weapon model.



Using the UE4 3rd Person example character, I built my character, replacing the model and adding sockets to hold the gun model.



I set up a basic walk/run blend for the non-aimed mode, then I used the directional run animations to create a multi-directional BlendSpace for use when the character aims the gun so that the animations blend smoothly in all directions.



I wanted the tail and hair to have physics simulation, so this involved creating separate rigged skeletal mesh versions of the two parts in Maya.





Then importing them into UE4 as skeletal meshes with physics constraints.





Which I then attached to the character blueprint using sockets.

Direction Arrow

Due to the way the Boss character jumps around the area, I realised I needed an on-screen way to track the location of the character.

I took inspiration from the Crazy Taxi direction arrow, which guides the player towards their destination.



While this is a 3D arrow, I needed a way to render it to the screen as a 2D UI Element.

I started by creating my Arrow Object and encasing it in a 'Blue Screen' kind of shell to isolate it from the surroundings and give an easy colour contrast to make into the alpha later in the process.





I used a Render Target material to capture the arrow from the camera's point of view.

To isolate the Arrow and make the background transparent, I created a Material which removed all blue from the Material as an Alpha, which translates to transparent in the UI system.



To rotate the arrow object, I used code that set the player character as the origin and the Boss as a look-at target for the arrow, I then removed the player camera rotation from the YAW value so that it would stay relative to the camera rather than just the player model to avoid confusion.



And here's how it appears in-game on the UI:

Customisations

For my character customisation I wanted to offer several options and several interchangeable parts, as well as the ability to rotate the character to view your customisations.

To capture the controller and mouse rotate values, I had to use variables in the dummy character to capture the values, which then triggered event dispatchers.

These event dispatchers are then linked to custom events inside the character select object, which use the variables to update the rotation of the character depending on the controller used.

For clothing/armour I added a Bracer which can be toggled on or off.

For Weapons, the user can change the appearance of their Main Sword, Shield and Great Sword. This will also replicate onto the character in the game.

This is achieved using Arrays of objects in the Game Instance, then using a construction script to create the character.

The menu code communicates to the character select blueprint to iterate up or down through the object array, then update the look on the character. The code for the Shield is shown below, but they all act in much the same way.

Once these options are set, when the game loads, the character blueprint runs a construction script to add the chosen weapons to the character and toggle on/off the bracer.

Which results in the correct items being displayed in-game on the character model.

Character Select

This menu has controller support, to read how this was achieved, please read the post titled Menus with Controller Support.

On the character select screen, I wanted each character to be highlighted when not just the player hovers the character model, but also when the buttons are focused on the UI using the controller or the mouse.

To achieve this effect, I had to use code in the character objects to check the highlight status of the buttons in the menu.

When the menu is created, it is added as a variable in the Dummy Character. As long as we keep it as a variable, we can read the status of elements inside it.

The code in the character objects check the variable and get the focus status of their respective button, then use this to choose whether to turn on or off their highlight.



and the result is:

Quit/Restart/Controls

These menus have controller support, to read how this was achieved, please read the post titled Menus with Controller Support.

This post will cover the simpler menu items.

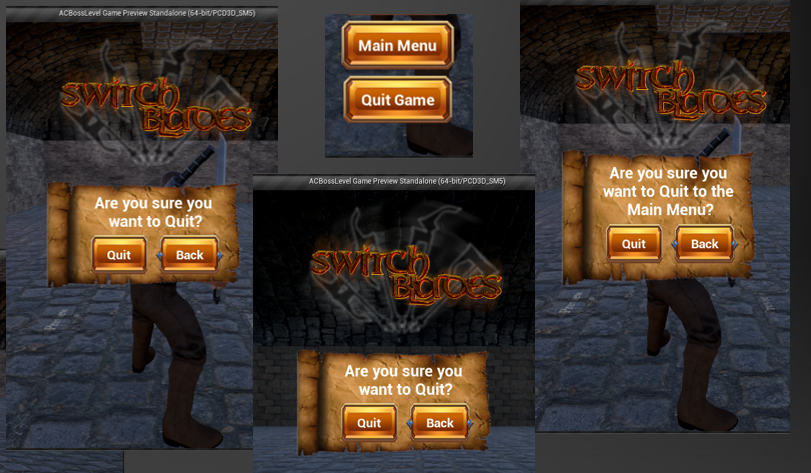

For each of my Quit options, I have a secondary menu widget that appears that allows the player to confirm or back out of the option. This is simply a menu widget with two buttons as well as an input capture for pressing the 'B' button on the controller.



The controls option from the Pause menu is also a simple widget with an image of the controls and a back button. This also contains an input capture for the 'B' button to back out and remove the widget.

Main Menu, Options

This post will cover the contents and functionality of the Main Menu and Options screen. To see how I implemented controller support, please see the pose titled Menus with Controller Support.

In the main menu, I didn't want to overwhelm the user with too many options, so I limited it to just Starting a new game, setting graphics options and quitting the game.

New Game takes the player to the level select screen.

Options takes the user to the Graphics Options, which looks like this:

As you can see, the user's chosen options will remain pressed, to show which option is selected.

The options are first set by the player, then they will apply when the 'Apply' button is pressed.

This is achieved by having a set of console command functions in text string arrays.

Clicking the buttons set which functions are added to the final array.

 When the Apply button is pressed, a loop will set the commands array running, which will set the player's options.

With this method, I think it's easier to integrate new options and also to re-purpose the code to other functionality, so it can be re-used at a later date.

As the options menu is so large, it was extremely time consuming to add the controller support, but I did do it. Here's what the controller code looks like, 22 buttons integrated.

Pause Menu - Un-pausing

For my menu system, one of the goals is controller functionality.

To see how I achieved controller funtions on the menu buttons, see the post titled Menus with Controller Support.

A problem I ran into with my pause menu was that when you pause the game, everything that isn't running in the menu pauses, including outside controller functions. This means that you cannot un-pause a game using a controller face button unless you do a specific thing.

The first method I tried was simply having a Flip/Flop on the player controller that paused and un-paused the game each time it was pressed. This failed due to the above problem; functions on the player character pause when the game pauses.

I also tried to use standard button input captures in the actual menu, but those are not directly supported (but I was on the correct line of thought).

A new tact was needed:

Function Input Overrides

This special type of function allows a menu widget to capture button inputs that aren't part of the normal navigation or mouse interaction associated with menus.

In this instance I'm getting a capture for either the controller 'Start' button or the 'P' button on the keyboard, which if detected will use an event dispatcher that communicates with the player character to take the game out of it's paused state and remove the menu widget from the screen.

I think this is an okay way of doing things, but it would be nice if Epic implemented standard input calls into the menu, as this would make it easier to assign things to specific buttons without going through a special function, which could end up having several branches if many button functions are required.

Menus with Controller Support

One of my goals with this project was to create menus with controller support.

I thought this would be a simple affair, but it seems it's a bit more difficult than simply having the controller focus a widget.

The expectation was that setting the button style for mouse hover would also work for having the button focused with the controller, but this is not the case.

There is a 'quirk', though it is intended functionality, with UE4's menus in that mouse hover and controller button focus are treated as different things, which is probably useful in some circumstances, but makes controllers interacting with simple list menus more complex than they need to be.

To get this to work as one would expect, you need to capture which menu item is being focused by the controller and set the button style accordingly.

This is achieved by first adding all of the buttons in the menu to an array when the menu is created in memory.



This array is then used by a loop function checking the focus status of each button in turn, constantly updating which one is focused or not. This makes is less efficient than it would be if focus was treated as hover.



While this method works for the controller, it also breaks the standard hover functionality of the mouse, so we need to capture the hover status of the buttons and convert that hover into a focus state so it can be processed correctly by our function.



I feel it is an oversight on Epic's part to not at least allow a option in the widget setting that lets focus be treated as, or at least handled in the same way as, a mouse hover event. Another way this could be solved is have a focus style setting in the list along with hover. Games are being forced to be less efficient if they are required to use this method to control menus in a way the player would expect, plus it takes a much longer time for the developer to set each menu up.

Just look at all the extra code and looping required just to add this controller functionality to a menu.

Loading Screen

For loading into the game, I wanted a real loading screen. For this reason, I moved all my loading code into the loading screen and linked a progress bar to a variable which I increased as each part of the code executed.

Shown below is a section of the code:



And this is how the loading screen looks in game:
